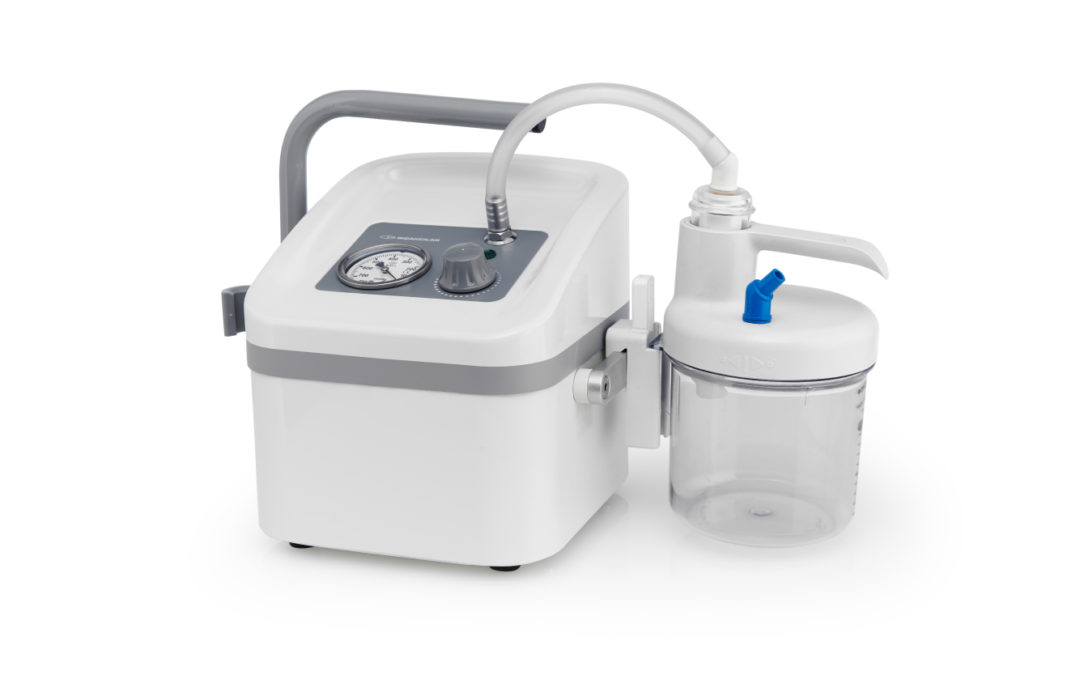

For bedside application

• 1 Liter collecting bottle

• Suitable for use with canister systems

• 0-600/620 mmHg vacuum range (at see level)

• Output: 20 L/min.

• Air fiiter

• Fluid aspiration into the pump:

  • Floating valve,

  • Hydrophobic filter:

    • Tight seal lid with clear view of the filter, enabling prompt filter change

    • Filter allows free air-flow, but prevents fluid overflow, protecting the pump

• A seperate suction line holder on the side

• Polycarbonate canister compatible with steam sterilization

• Operation status indication lamp

• Silent, dry vacuum pump

• Design features to prevent airborn contamination in operating rooms and clean rooms. No requirement for periodic lubrication and maintenence

• Motor speed: 1400 rpm

• Mobile

• Sturdy body construct with durable polyester dye

• Rated voltage: 230V, 50/60Hz

• Power consumption: 60W

Our Aspirators can save lives by reaching to patients no matter where they are.

Portable aspirators are an important tool in saving lives fo patients that are treated at home as the first line of defense against aspiration and respiratory obstructions. There are a variety of reasons for suctioning a patient with special needs, but the primary reason is the same for any patient: to avoid hypoxia by maintaining airway patency. Here are some signs and symptoms that may indicate your patient requires suction:

• Difficulty breathing
• Nasal flaring
• Patient positioning
• Abnormal respiratory pattern
• Obstruction – Determine the nature of the obstruction
• Partial – Allowing reduced airflow
• Complete – Total cessation of breathing
• Excessive secretions
• Saliva/phlegm
• Blood
• Vomit

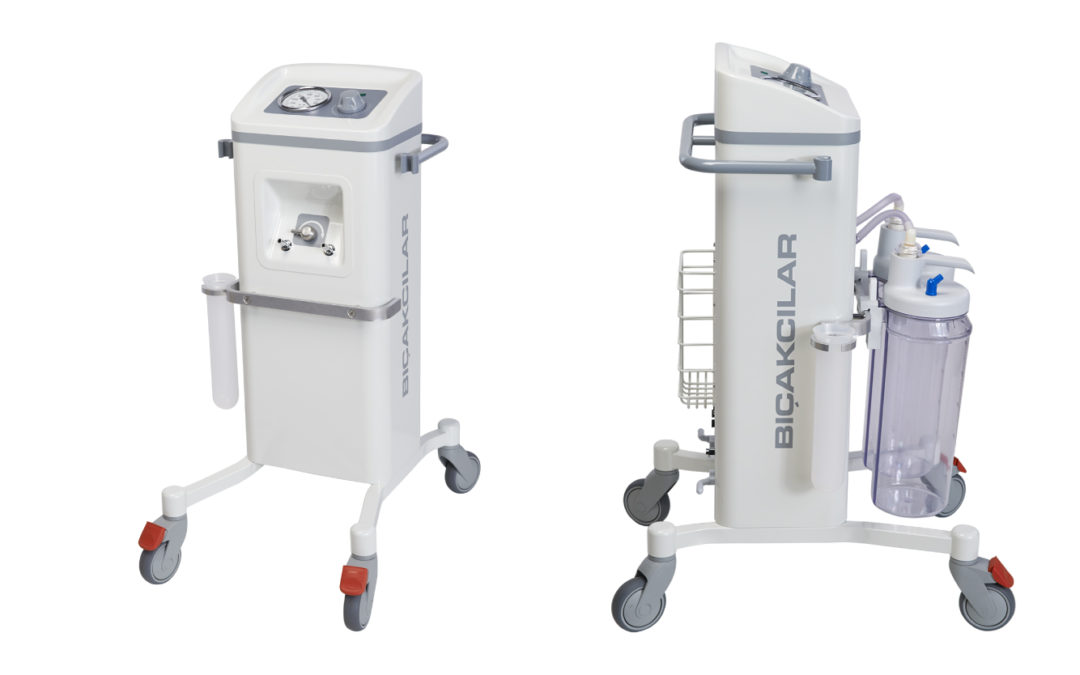

For operating room, critical care, emergency care and outpatient clinic use

2, 3 and 5 L single/double polycarbonate bottle combinations

Suitable for use with canister systems

0-680/710 mmHg vacuum range (at sea level)

Vacuum diversion knob to select bottle

Vacuum adjust knob and 100mm gauge

Output: 60L/min. motor pump

Pump Type: Piston pump

Air filter

One suction bag remains functional while other is being discarded

Ergonomic control panel design with 25 degree angle

Fluid aspiration into the pump:

• Floating valve,

• Hydrophobic filter:

• Tight seal lid with clear view of the filter, enabling prompt filter change

• Hydrophobic filter allows free air-flow, but prevents fluid overflow, protecting the pump

Steering handle

Basket in the rear for spare suction catheters

Rinse solution receptacle and two separate suction line holders on the sides

Polycarbonate bottle/canister and Lid compatible with steam sterilization (Applicable for 2 and 3 L bottles/ canisters)

Operation status indication lamp

Noise level: 40 dB ±5

Design features to prevent airborn contamination in operating rooms and clean rooms. No requirement for periodic lubrication and maintenance

Motor speed: 1400 rpm

Sturdy body construct with durable polyester dye

Mobile

Four 360° swivel castors with 100 mm diameter, two with brakes

Optional foot pedal

Rated voltage: 230 V, 50/60 Hz

Power consumption: 145 W

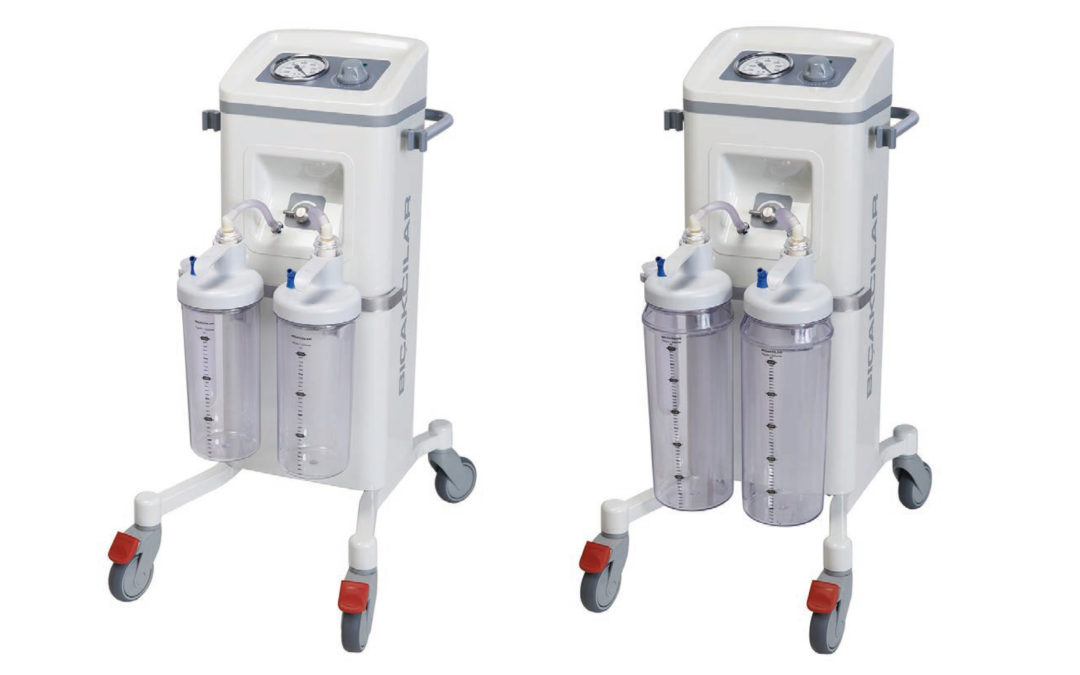

Vaculine Maxi Surgical Aspirator is ordered as the basic unit. The bottle kits configuration can be selected according to customer requirements and shall be ordered separately.

Vaculine bottle sets can be ordered as; 2 x 2 liter, 2 x 3 liter or 2 x 5 liter separately according to customer requirements.
