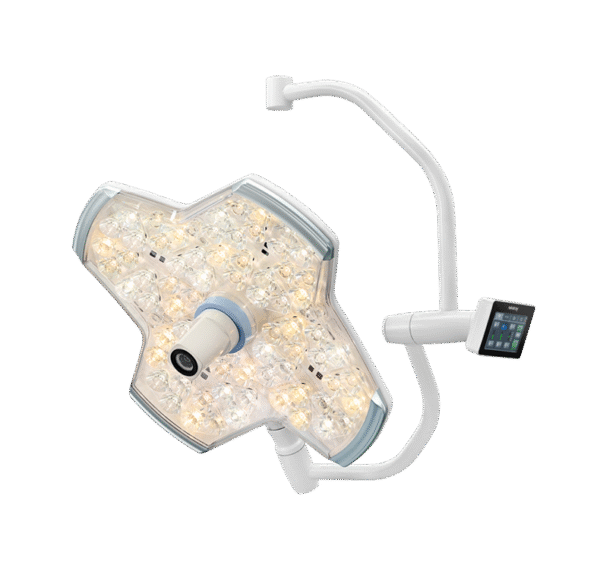

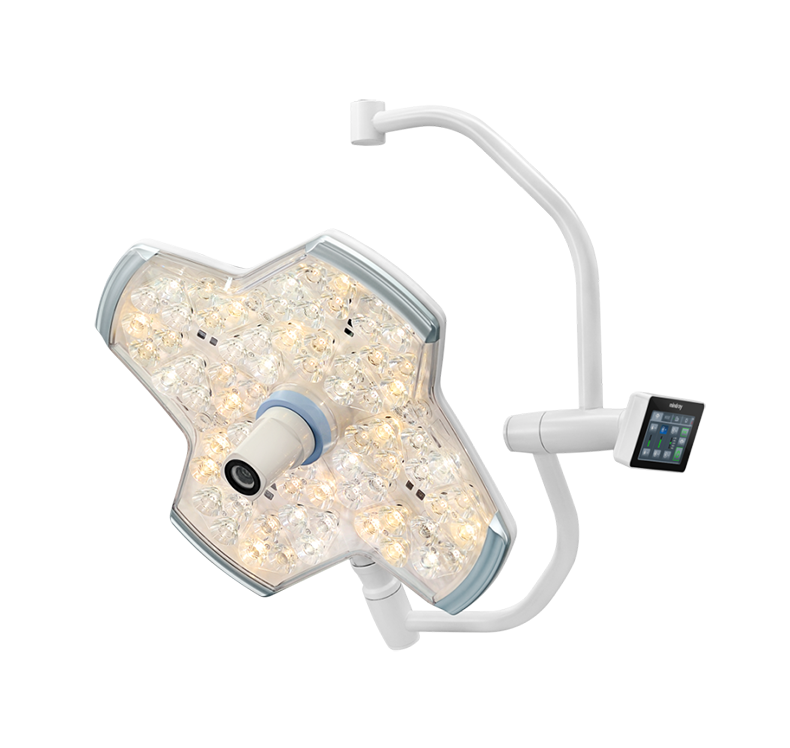

HyLED X Series

Product Specification:

• Central illuminance (at 1 m distance): 160,000 lux
• Light field diameter (at 1m distance): 140-320mm in ten levels
• Light field(D50/D10): 70%
• Depth of illumination (20%): 1,200mm
• Color Temperature: Standard: 4,350K; Variable CCT: 3,500-5,100K
• Color rendering index(Ra): 97
• Color rendering index(R9): 97
• Shadow dilution with tube: 100%
• Shadow dilution with one mask: 65%; 100%(with AICS Plus)
• Shadow dilution with tube and one mask: 65%; 100%(with AICS Plus)
• Shadow dilution with two masks: 55%; 100%(with AICS Plus)
• Shadow dilution with tube and two masks: 55%; 100%(with AICS Plus)
• Ambient light: Green light ≤500Lux
• Power supply of all light sources: 55w
• Power supply: 100VAC-240VAC, 50/60Hz
• Dimming range: 3-100%
• Light head dimension: ≤700mm

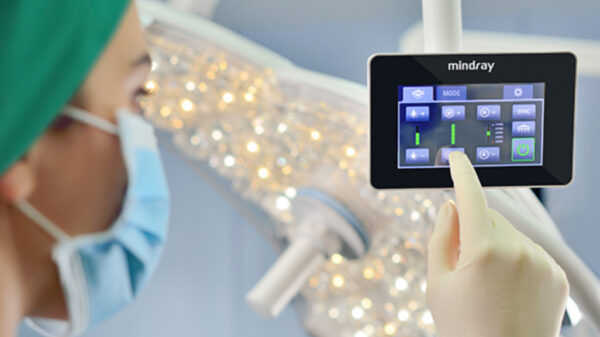

• Standard features: iRelax, green ambient light, AICS Plus
• Protection against harmful ingress of water or particulate matter: IP54
