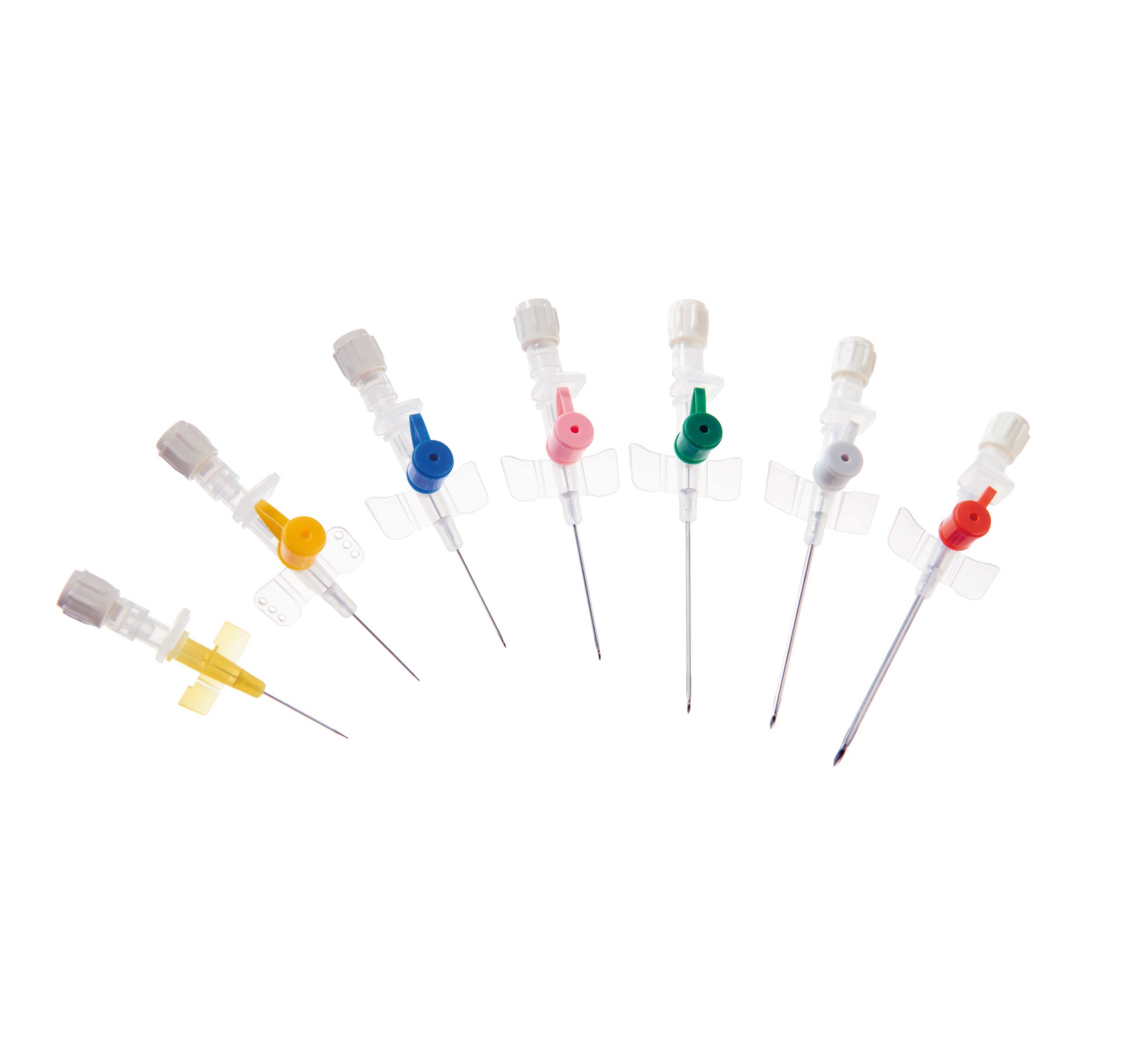

I.V Cannula
I.V Cannula - Image 2

I.V Cannula

  • Back cut needle bevel for easier insertion with minimal trauma
  • Thin wall FEP catheter with three embedded radiopaque lines provides high flow rate
  • Flexible and kink resistant catheter is double tapered with a rounded tip for smooth introduction and minimal discomfort to the patient
  • Injection port option with one way valve and colour coded cap for intermittent and safe administration of drugs during infusion
  • Flexible wings provide a good grip for easy insertion, secure fixation and also prevent skin contact with luer lock connection
  • Highly transparent flashback chamber for instant blood backflow indicating vessel entry
  • Blood stopper Color coded
  • Luer lock cap for closing the proximal end of the catheter after needle removal
Category:
w/Port wo/Port Size Color O.D. (mm) I.D. (mm) Cannula Length Flow Rate (ml/min)
146 1401 1 14G Orange 2.20 1.74 45 mm 325
146 1601 1 16G Grey 1.72 1.33 45 mm 200
146 1801 1 18G Green 1.34 1.00 45 mm 100
146 2001 1 20G Pink 1.12 0.79 32 mm 58
146 2201 1 22G Blue 0.91 0.64 25 mm 32
146 2401 1 145 2401 1 24G Yellow 0.71 0.51 19 mm 20
