Neuster H2o2 Plasma Sterilizer

Neuster H2o2 Plasma Sterilizer

by | Dec 28, 2022 | PMS Plasma Sterilizer

NEUSTER H2O2 PLASMA STERILIZER

Elegance meets Utility

Neuster SW Series Sterilization Systems are the latest development in low temperature hydrogen peroxide sterilization. They are designed with most advanced electronic and mechanical features for fully automated safety & control to serve your facility years after years.

Ready to use, just plug in and start. No additional installations are required. Reduced weigh and device mobility enables easy relocatişon and superior compatibility to your CSSD. All sterilizers are designed for optimum use of power and low energy consumption, without affecting the performance.

All sterilizers are featured with a touchscreen computer control. One touch sliding menu provides easy operator access to detailed device controls, cycle records and settings.

Equipped with most powerful device components more rapid sterilization cycles and faster sterilization load flow at CSSD’s are now possible.

pms-healthcare-hydrogen-peroxide-sterilizaiton-01

Product Description

pms-healthcare-hydrogen-peroxide-sterilizaiton-07

Chamber Design

Light and Durable
Neuster SW series sterilizers are equipped with weight reduced aluminium chambers coated with specially formulated PTFE polymers.
Applied polymer coating is both non-stick and scratch resistant. Neuster device chambers will remain clean and brand new looking even after years of operation and intense utilization.

Each shelf is capable to carry a sterilization load of max. 30kg.

pms-healthcare-hydrogen-peroxide-sterilizaiton-08

Plasma

Residue free sterilization
Neuster SW hydrogen peroxide sterilizers utilize a RF plasma system to provide residue free sterilization. The plasma system is activated during the sterilization process and enables the composition of hydrogen peroxide to water and oxygene molecules.

Sterilization with plasma provides user safety and is environmental friendly.

pms-healthcare-hydrogen-peroxide-sterilizaiton-03

User Interface

One touch start cycle
Neuster SW devices feature unique sliding menu configuration allowing operators single touch run of a cycle and accessibility over various user controls from a single menu frame. Unlike common difficult to use screen keyboards, the operator identification is achieved through an electronic ID card.

Sterilization Cycle & Agent

pms-healthcare-hydrogen-peroxide-sterilizaiton-05

Sterilization Cycle & Agent

Neuster SW series h2o2 plasma sterilization systems perform three different and pre-validated sterilization cycles defined by the sterilization load, duration and varying process parameters. With the one touch start cycle feature the user is able to select the best suiting program for medical devices to be sterilized.

Cycle Durations
Short Cycle: 30 min.
Standard Cycle: 45 min.
Long Cycle: 55 min.

pms-healthcare-hydrogen-peroxide-sterilizaiton-06

Sterilization Agent

Neuster SW sterilizers are making use of 150ml bottled %58 hydrogen peroxide as sterilization agent to perform 15 cycles. Sterilization agents are seperately validated and electronically traceable.

An automated front loading system is employed to accept or reject sterilization agent bottles. Usage data and validation credentials are stored and readily accessible.

Features

High Performance

  • Three pre-validated sterilization cycles
  • Sterilization of heat and moisture sensitive medical devices
  • Detailed documented sterilization efficiency and material compatibility studies

Low Running Costs

  • Complete solution and service provider
  • Validated consumables
  • h2o2 sterilization agent for 15 cycles
  • Time and cycle cost saving

Advanced Technology

  • Sterilization efficiency by advanced vaporizer system
  • Improved RF Plasma technology
  • User and Sterilant traceability with RFID
  • USB, WIFI and LAN connectivity

Use Ergonomics

  • Understandable and easy to use interface
  • Hands-free loading with foot sensor
  • Real time cycle monitoring and recording
  • Validatable sterilization process
  • Mobile and flexible

Environment & User Friendly

  • No toxic or hazardous residue
  • H2O2 composed to water and oxygen during sterilization
  • Plug & Start feature
  • No need for complicated water supply or air ventilation systems.

iF Design Award

Neuster awarded for elegance and utility

PMS-iF-Design-Award

Neuster h2o2 Plasma Sterilizer was recognized with the iF Design Award in the product category for medicine, healtcare for its ergonomic design and impressive features. With its minimal and modern design, neuster h2o2 plasma sterilizer strikes perfect balance between elegance and utility.

The sterilizer provides exceptional sterilization performance and user comfort thanks to its sophisticated technology and user interface. The front surface is covered with block schock resistant glass surface combined with a large sized capacitive touchscreen.

About If Design Awards iF Design (International Forum Design GmbH and iF Industrie Forum Design e.V) has been known for 60 years as a mediator between the worlds of design and business. The International Forum Design GmbH organizes the iF design awards, which include three major awards in product, communication and packaging design.

DigiEye 280

DigiEye 280

by | Dec 23, 2022 | Stationary X-ray

Mobile Radiography System

DigiEye 280

Features

Radiography Made Easy

DigiEye 280 is a floor-mounted DR system powered by Mindray’s innovative technology. Portable flat detector designed to meet all your clinical requirements

p28-s2-1-web

Flexible and Efficient Positioning:

Positioning is the same with conventional radiography without any change. Shift rapidly from standing position to lying position, Fixed floating table can reduce patients moving time greatly and improve throughput

p28-s2-2-web

Portable Detector to Meet all Clinical Applications:

Single detector system provides you with most flexibility for all applications on wallstand and table. On a stretcher bed or wheelchair, patients can be examined directly, to avoid secondary injury caused by moving

p28-s3-web

Advanced Technologies Bring Excellent Image Quality:

Higher frequency generator, and durable tube ensure the quality of X-ray. High DQE of flat-panel detector makes better image quality while reducing the X-ray dose for clinical diagnosis

p28-s4-1-web

Multi-functional Operator Console

  • One button power on/off
  • Patient information input and retrieval
  • Exposure parameters adjustment
  • Image acquisition, automatic optimization and post processing
  • Image print, transfer and storage (DICOM)

p28-s4-2-web

Clinical Images

LOGIQ Fortis™ Ultrasound

LOGIQ Fortis™ Ultrasound

by | Dec 22, 2022 | Ultrasound System

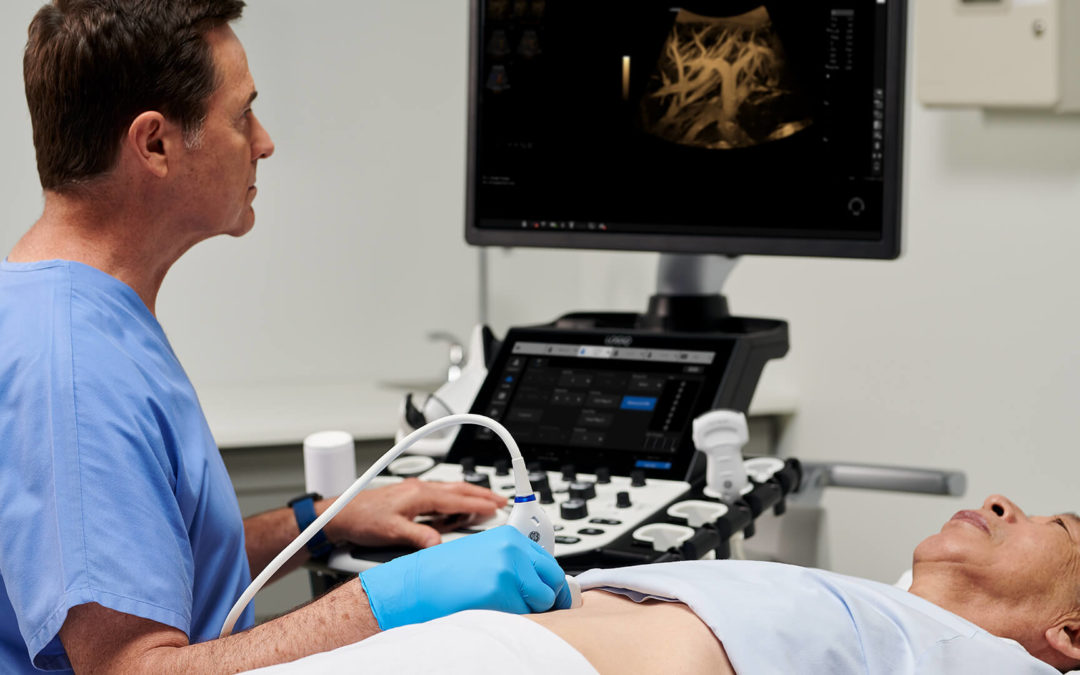

LOGIQ Fortis™
Ultrasound

Sleek, compact, and highly reliable: The new LOGIQ Fortis enables you to conduct a full spectrum of exams and procedures in multiple clinical settings.

At a glance: The strengths of LOGIQ Fortis ultrasound systems

AI-enhanced productivity tools

Use AI-based tools to improve productivity and enhance clinical confidence.

2D Shear Wave Elastography

Quantitative measure of tissue elasticity shown in color-coded elastograms.

SonoDefense security

Our multi-layer approach to cybersecurity and patient data privacy.

A to A digital platform

Add new features and advancements for your ultrasound systems as they become available.

At a glance: The strengths of LOGIQ Fortis ultrasound systems

The GE LOGIQ Fortis ultrasound is built to help users deliver on the promise of confident care in multiple clinical settings. Small and sleek enough to move to patients across departments and equipped with our most powerful technology, it is GE’s affordable all-in-one solution.

One of the most prestigious design competitions in the world, the iF Design Award has recognized design excellence worldwide since 1953.

Logiq P10

CLINICAL IMAGES

LOGIQ Fortis at work


Thyroid Micro Vascular Imaging with Radiantflow™, ML6-15-D


MSK Achilles B-Mode with Photo Assistant, ML6-15-D

Carotid Color Flow PW, L2-9-D


3D TUI Uterus IUD, RIC5-9-D


Color Flow and CW Doppler Mitral Valve, M5Sc-D


Liver 2D Shear Wave with Quality Indicator, C1-6-D



YOUR MULTI-PURPOSE ULTRASOUND SYSTEM

Everything you expect in a LOGIQ™

system – streamlined and powerful

The new LOGIQ Fortis is your affordable all-in-one ultrasound solution. It combines state-of-the-art technology with optimal scalability.
Download product brochure
POWERFUL

Clinical expectations:
exceeded

Equipped with next-generation imaging technologies, LOGIQ Fortis is your all-in-one ultrasound solution for whole body imaging.

Our powerful cSound™ architecture increases processing power and data throughput by combining XDclear™ transducers, cSound Imageformer and new, advanced Speckle Reduction Imaging (SRI) technology. This ultimately results in exceptional image quality, clarity and clinical confidence across a wide range of clinical applications.

Intelligent features such as the 2D Shear Wave Elastography, Measure Assistant and Radiantflow reduce the need for invasive procedures by providing additional, valuable data for informed decision making.

STREAMLINED

Productivity & workflow: optimized

Improve speed, ease and comfort of all your ultrasound exams – and deliver confident clinical diagnosis at the same time.

  • LOGIQ apps add next-level context to photos and enable you to control your ultrasound system remotely.
  • Scan on battery power and conduct exams anywhere.
  • Use ergonomic EZ-Imaging to increase efficiency and reduce your keystrokes.
  • Raw Data capabilities allow you to modify images after an exam.

With premium features and a sleek design, LOGIQ Fortis is your ultrasound solution for any patient – head to toe, obese to thin, neonate to geriatric, and across your facility.

MULTI-PURPOSE

Your investment: maximized

Purchasing an ultrasound system is a long-term investment in your facility, your clinicians and your patients. Thus, GE offers various robust Lifecycle Solutions for your LOGIQ Fortis.

  • InSite™ for quick and efficient remote support whenever you need it.
  • iCenter™ provides you with detailed performance analytics.
  • The remote device management solution AVURI™ helps you to view, backup and deploy device configurations.
  • The A to A digital platform lets you add next-generation capabilities to your LOGIQ.
  • SonoDefense offers 24/7 protection against cyber threats and unauthorized access.

EZ IMAGING

LOGIQ’s solution to ergonomic scanning: Increase efficiency and consistency of your ultrasound exams.

With customizable probe presets and a simplified touch panel, EZ Imaging enhances workflow by reducing operator interaction and set-up time. For users, this resulted in 38% fewer total keystrokes and an overall satisfaction rating of 4.9 out of 5.
Download case study

WHAT OUR USERS SAY

Fast and intuitive: What physicians say about
EZ Imaging

“You didn’t have to adjust any of the knobs, which was a positive. There was almost no manual adjustment.”



Staff Sonographer (MFM outpatient clinic)12 years’ experience

12 years’ experience

“It would be quick to learn for current LOGIQ users and less steps once you transitioned, which would help with throughput.”



Ultrasound Manager (Vascular OB/GYN)

30 years’ experience

“It’s a lot easier with the touchscreen and the changes where you don’t have to hit the probe or another tab.”



Staff Sonographer (Radiology department)

11 years’ experience

“It’s more intuitive, it saves a lot of plunking around and a lot of manual adjustments. It will result in a smoother, faster workflow with less button pushes – pretty sweet!”



Advanced Sonographer (OB/GYN Hospital & Clinic)

28 years’ experience

YOUR MULTI-PURPOSE SYSTEM

Designed for whole body imaging

Abdominal imaging

Musculoskeletal imaging

Vascular imaging

Head & neck imaging

Pediatric imaging
Rad-97®

Rad-97®

by | Dec 9, 2022 | Cerebral Oximetry

Masimo - Rad-97 Family

Rad-97®

Not Your Ordinary Patient Monitor

The Rad-97 Pulse CO-Oximeter®, also available with integrated NomoLine® capnography or noninvasive blood pressure (NIBP) measurement, offers advanced patient monitoring technologies in a compact, portable, and highly configurable standalone device.

Rad-97, which can be mounted on a mobile roll stand, is customizable, upgradeable, and incorporates advanced connectivity and data integration capabilities, allowing clinicians to tailor the monitor to best suit various clinical needs. Rad-97’s sleek, responsive, and intuitive multi-touch display quickly provides clinicians with pertinent data gathered from multiple advanced monitoring technologies, offering a more complete picture of a patient’s physiological status.

Advanced, Upgradeable Monitoring Technologies



All three Rad-97 models provide noninvasive and continuous monitoring through Masimo SET® Measure-through Motion and Low Perfusion™ pulse oximetry and upgradeable rainbow SET™ technologies, including total hemoglobin (SpHb®) and acoustic respiration rate (RRa®).

Masimo SET® Pulse Oximetry

Upgradeable rainbow SET Technology

Masimo - Rad-97 NIBP Roll stand digital

Rad-97 with NIBP provides three measurement modes of oscillometric blood pressure: spot-check, automatic interval, and stat interval. The integrated NIBP technology is compatible with both single-patient-use and reusable cuffs for adult, pediatric, and neonatal patients.

Masimo - Rad-97 with NomoLine capnography

Rad-97 with NomoLine capnography features an integrated sidestream gas analyzer for capnography — meeting continuous Pulse CO-Oximetry and capnography needs in a single device. This Rad-97 model provides continuous end-tidal carbon dioxide (EtCO2) monitoring with numeric, trend, and waveform viewing options, as well as fractional concentration of inspired carbon dioxide (FiCO2) and respiration rate (RR).

Integrated Connectivity Solutions for Simplified Workflows

Built-in enterprise Wi-Fi capability allows Rad-97 to connect wirelessly to Masimo Patient SafetyNet™* or Iris Gateway®, facilitating automatic electronic charting of patient data to electronic medical record (EMR) systems. The continuous, automated flow of patient data from Rad-97 to patient data management systems, such as EMRs, may help reduce charting errors1 and streamline clinician workflows.

Rad-97 is also compatible with existing nurse call systems and features Ethernet and USB ports for seamless integration into wired infrastructures.

Masimo - Rad-97 PLM-10869A

Rad-97

Masimo - Patient SafetyNet/Iris Gateway

Patient SafetyNet/Iris Gateway

Masimo - Electronic Medical Record

Electronic Medical Record

Highly Customizable and Adaptable for Multiple Clinical Environments

Rad-97 device settings can be configured to suit a variety of clinical environments, workflows, clinician preferences, and patient-specific needs.

Masimo - Rad-97 Screen Finger

Rad-97 - Screen Profiles

Clinicians can easily customize the high-resolution, multi-touch display to feature the most applicable measurements for each patient, with options to view parameter data at a glance in numeric view or assess patients over time in trend view. Users can also rapidly configure the device to accommodate different patient populations using pre-programmed and customizable profiles for adult, pediatric, and neonatal patients. In addition, Rad-97 can be mounted on a portable roll stand for tetherless device transport, offering flexibility in situations where space is limited.

Rad-97 Configurations

Masimo - Rad-97 Pulse CO-Oximeter

Rad-97 Pulse CO-Oximeter

Masimo - Rad-97 with Noninvasive Blood Pressure

Rad-97 with Noninvasive Blood Pressure

Masimo - Rad-97 with NomoLine Capnography

Rad-97 with NomoLine Capnography

References:

  1. 1The Value of Medical Device Interoperability. West Health Institute. 2013.
  2. *The use of the trademark PATIENT SAFETYNET is under license from University HealthSystem Consortiu

RESOURCES

Product Information, Rad-97

Rad-97

Product Information

Masimo - Product Information, Rad-97 NIBP

Rad-97 NIBP

Product Information

Masimo - Product Information, Rad-97 with NomoLine Capnography

Rad-97 with NomoLine Capnography

Product Information

Root with O3 Regional Oximetry

Root with O3 Regional Oximetry

by | Dec 9, 2022 | Pulse Oximetry

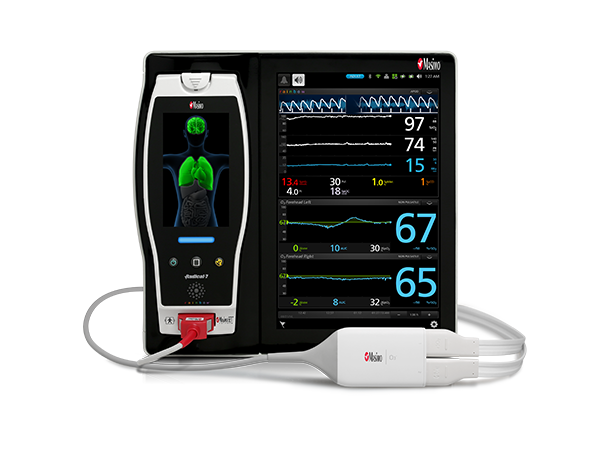

Root with O3 Regional Oximetry

Available for Adult, Pediatric, Infant, and Neonatal Applications

  • May help clinicians monitor cerebral oxygenation in situations in which pulse oximetry alone may not be fully indicative of the oxygen in the brain
  • Seamlessly integrates with the Root platform alongside SedLine® Brain Function Monitoring (available for adult and pediatric patients) for a more complete brain monitoring solution

O3 Display

Masimo - O3 Display Cerebral Oximetry

O3 Monitoring

The Root patient monitoring and connectivity hub offers plug-and-play monitoring with Masimo Open Connect® (MOC-9®) modules.*

Applying O3 Sensor

Apply the appropriate O3 sensors to the forehead:

  • Adult Adhesive Sensor (≥40 kg)
  • Pediatric Adhesive Sensor (≥5 kg and <40 kg)
  • Infant and Neonatal Adhesive Sensor (<10 kg)

Connect the O3 sensors to an O3 MOC-9 module

Connect the O3 sensors to an O3 MOC-9 module (up to two sensors per module).

Connecting O3 MOC-9 Module to port in the Root

Connect the O3 MOC-9 module to one of three Root MOC-9 Ports.

*In countries with regulatory approval and Root devices with the correct software version.

A More Complete Picture of the Brain

Adult in ICU with O3

O3 Regional Oximetry can be used simultaneously with Next Generation SedLine on the Root platform for a more complete picture of the brain. Next Generation SedLine brain function monitoring helps clinicians monitor the state of the brain under anesthesia or sedation with bilateral acquisition and processing of four leads of electroencephalogram (EEG) signals. Next Generation SedLine features an enhanced signal processing engine, driving a variety of performance improvements, and an enhanced Multitaper Density Spectral Array (DSA).

RESOURCES

Masimo - Front page of Product Information - Masimo softFlow

Masimo softFlow

Product Information

Masimo softFlow™

Masimo softFlow™

by | Dec 9, 2022 | High Flow Oxygen Machine

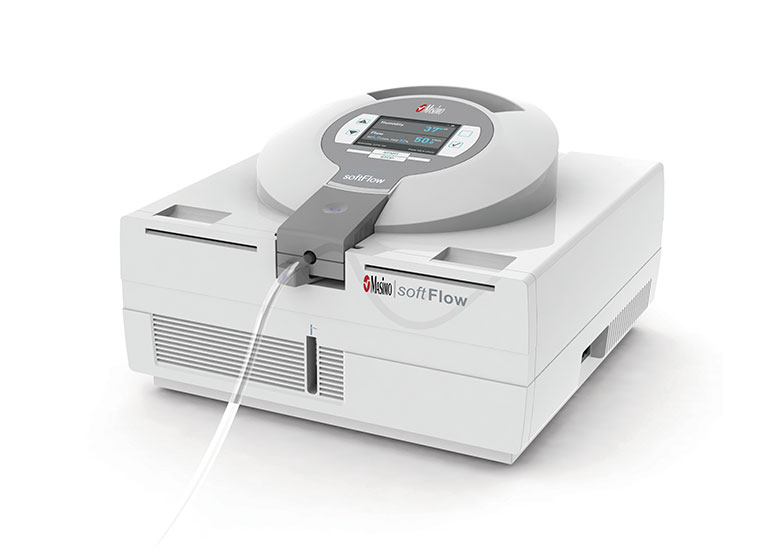

Masimo softFlow on white background

Masimo softFlow™

Nasal High Flow Therapy for Spontaneously Breathing Adult Patients in Hospital and Long-Term Care Facilities

  • Respiratory support delivered through a soft nasal cannula interface
  • Wide flow range from 10-60 L/min* in 0.5 L/min steps to permit flow rate to be tailored to the specific needs of the patient
  • Ability to supplement oxygen with 0-60 L/min flow and up to 100% FiO2 from wall supply, oxygen cylinder, or concentrator
  • Integrated flow driver provides flow without the need for wall air supply
  • Warmed humidification of respiratory gas all the way to the patient’s nose to enhance therapy comfort and aid in mucous clearance1,2
  • Condensate-free delivery of a consistent, high-velocity flow during inspiration and exhalation
  • Auto-identification of type of nasal cannula and breathing circuit to improve and simplify workflow through automated configuration
  • Bacterial/viral filter between device and patient, rather than between device and room air, to reduce risk of cross-contamination

softFlow Accessories

Masimo - softFlow nasal application on woman laying in hospital bed

softFlow Nasal Applicator

Available in Small, Standard, Standard-Plus, and Large sizes

Masimo - Heater Wire in the Nasal Applicator

Heater Wire in the Nasal Applicator

Unique one-piece design permits heater wire all the way to the nares to reduce condensation

Masimo - softFlow 50 stand on white background

softFlow Product Stand

Masimo - woman on stomach in hospital bed with TNI softFlow

Masimo - Woman drinking water with TNI softFlow

softFlow Accessories

RESOURCES

Masimo - Front page of Product Information - Masimo softFlow

Masimo softFlow

Product Information

Next Generation SedLine Brain Function Monitoring

Next Generation SedLine Brain Function Monitoring

by | Dec 9, 2022 | Sedation Monitor

Masimo - Next Generation SedLine® Brain Function Monitoring

Next Generation SedLine® Brain Function Monitoring

A More Complete Picture Starts with More Complete Data

Root® with Next Generation SedLine Brain Function Monitoring helps clinicians monitor the state of the brain under anesthesia with bilateral data acquisition and processing of electroencephalogram (EEG) signals.

Next Generation SedLine Features:

  • Four simultaneous channels of frontal EEG waveforms
  • An enhanced Patient State Index (PSi), a processed EEG parameter related to the effect of anesthetic agents
  • A Density Spectral Array (DSA) display, which contains left and right spectrograms representing the power of the EEG on both sides of the brain
  • An optional Multitaper DSA, which may enhance visibility of EEG features

Improved Patient State Index (PSi)


Next Generation SedLine features an enhanced signal processing engine which provides an enhanced Patient Sate Index (PSi), a processed EEG parameter related to the effect of anesthetic agents.

EEG experts scored the improvement in PSi performance between the original SedLine PSi and Next Generation SedLine PSi. A 25% average improvement in Next Generation PSi performance was found.

Expert Scoring of Next Generation SedLine1

Masimo - Expert Scoring of Next Generation SedLine

To evaluate the performance of Original PSi and Next Generation PSi, independent EEG experts reviewed cases with both Original PSi and Next Generation PSi (blinded to the version), along with additional clinical information (MOAAS scores, EEG waveforms, drug doses, and vital signs). Compared to the expert-assessed anesthetic depth, an error was defined as a case when expert assessment of PSi was ‘Low’ or ‘High’ and success was defined as a case when the expert assessment of PSi was ‘Good’.

Parallel Signal Processing Engines

EMG is a common confounding factor that can interfere with EEG signals used in brain function monitoring.2 Next Generation SedLine utilizes Masimo’s Parallel Signal Processing Engines to extract a clearer EEG signal for computing PSi.

Masimo - Parallel Signal Processing Engines

This image captures a moment when Next Generation SedLine detects EMG in the two engines depicted.

Adaptive Signal Processing with Band-Independent Features

Power across all frequency bands decreases with age.3 When computing PSi, Next Generation SedLine uses adaptive signal processing with band-independent features to search for EEG features across many frequency bands.

Masimo - Adaptive Signal Processing with Band-Independent Features

Multitaper Density Spectral Array (DSA)

The Next Generation SedLine module easily plugs into the Root patient monitoring platform via Masimo Open Connect® (MOC-9®) ports. Root’s customizable, easily-interpretable display offers multiple views of brain monitoring information expanding visibility in the operating room and intensive care unit.

Masimo - Next Generation SedLine on the Root Platform Screens

Next Generation SedLine can be used simultaneously with O3® Regional Oximetry on the Root platform for a more complete picture of the brain.

Masimo - OR Philips Root

RD SedLine™ EEG Sensor

Masimo - ICU SedLine Root

  • Four active EEG leads collect data in the frontal lobe
  • Soft foam pads for comfortable application on a patient’s forehead
  • Adhesive anchors ensure secure sensor placement for optimal signal quality
  • Pre-filled gel electrodes help streamline sensor application workflows
  • Application graphics for O3 regional oximetry sensor placement simplify simultaneous application of both monitoring technologies

Brain Monitoring Solutions

Explore the Root Platform and Brain Monitoring Sensors & Cables

Masimo - Products - Root

Root® Platform

Masimo - O3® Regional Oximetry

Root with O3® Regional Oximetry

Masimo - Brain Monitoring Sensors

Brain Monitoring Sensors

Steam High Temperature Sterilizer

Steam High Temperature Sterilizer

by | Dec 9, 2022 | High & Low Temperature Sterilizer

STEAM HIGH TEMPERATURE STERILIZER

Steam High Temperature Sterilizer

Hospital Application

The Steam High Temperature Sterilizer CISA (as shown on the legend) according the regulations of the CSSD is installed in the clean area with pass through access of sterile area.

“The machine is designed with PLC industrial grade microprocessor control for higher safety and guaranteed reliability; CISA R&D engineers have used advanced design to optimize the machine for the use in hospitals, by working on quality, safety and ergonomy.

The machine is built with highest quality components for perfect hygiene, perfect operation, high durability and maximum safety.

They are designed with a simple user system for operators and in full compliance with environmental requirements and low noise emissions. The Installation and the maintenance of the machines are easy and for the most of the models is possible to be done from the frontal side of the machine itself. Compact architecture and high reliability, are the core features of all our models.”

STERILIZATION CYCLES

Think Different

All pre-programmed cycles are validated as per EN285 standards. The customer can also run validation using the included validation ports for customer cycles according UNI EN ISO 17665-1.

The autoclave has programmed different cycles, depending on its application.

The cycles are as follows:

1. Sterilization cycle at 134°C for general porous load, empty glass ware and generally all load that is temperature-proof

2. Sterilization cycle at 134°C for general solid load, specifically for surgical instruments, empty glass ware and generally all load that is temperature-proof.

3. Sterilization cycle at 121°C for general porous load, empty glassware and generally all load that is temperature-proof

4. Flash cycle at 134°C

5. Steam penetration test cycle (Bowie & Dick)

6. Vacuum leak test

7. Open cycle (from 01 to 60 programmable cycles; must be validated; password protected)

HIGH TEMPERATURE STERILIZER

Plasma – Low Temperature Sterilizer

Plasma – Low Temperature Sterilizer

by | Dec 9, 2022 | High & Low Temperature Sterilizer

PLASMA - LOW TEMPERATURE STERILIZER

Plasma – Low Temperature Sterilizer

Hospital & Laboratory Application

The Plasma Low Temperature Sterilizer CISA (as shown on the legend) according the regulations of the CSSD is installed in the clean area with pass through access of the sterile area.

The plasma machine operates based on sterilisation with hydrogen peroxide.

Peroxide has a high oxidising effect, when it enters into the sterilisation chamber in vacuum conditions and in the presence of an electromagnetic field, it reforms into free radicals, spreading over the instrument surfaces.

These active radicals kill bacteria and micro-organisms, even at low temperatures.

It is therefore effective on temperature sensitive materials or in any case on instruments which are not resistant to high temperatures.

The degree of vacuum reached by the machine also allows removing any remaining peroxide residuals at the end of the sterilisation, which would otherwise remain on.

MODEL P-420 SPS EASY

How It Works

The plasma machine operates based on sterilisation with hydrogen peroxide. Peroxide has a high oxidising effect, when it enters into the sterilisation chamber in vacuum conditions and in the presence of an electromagnetic field, it reforms into free radicals, spreading over the instrument surfaces. These active radicals kill bacteria and micro-organisms, even at low temperatures. It is therefore effective on temperature sensitive materials or in any case on instruments which are not resistant to high temperatures. The degree of vacuum reached by the machine also allows removing any remaining peroxide residuals at the end of the sterilisation,which would otherwise remain on the instruments.

ADVANTAGES OF THE PLASMA METHOD

The Plasma series offers optimal sterilisation results for a wide range of medical devices.

  • Low temperature sterilisation (45-50 °C)
  • Improved penetration and efficiency
  • Improved heat distribution
  • No toxic residue
  • Full and safe sterilisation
  • Lower operating costs
  • Lower maintenance costs
  • Designed to be easily moved (on wheels)
  • High sterilisation flexibility
  • Colour touch screen to monitor parameters
  • Integrated incubator for microbiological tests
  • Multi shot hydrogen peroxide cartridges

PLASMA – LOW TEMPERATURE STERILIZER

Waste Management System

Waste Management System

by | Dec 9, 2022 | Waste management system

MEDICAL WASTE TREATMENT

Medical Waste Treatment

Shredding & Steam Sterilization of Medical Waste

The solution for medical waste treatment developed by CISA meets the needs of the community through safety materials and environmental safeguards for infectious diseases that can be brought by infectious and dangerous waste. In particular, the old method of combating this risk through incineration, which is still used, often causes dangerous gas emissions, such as dioxin, that are harmful to people and the environment.

The use of wet thermal method for medical waste is growing and, combined with CISA’s sterilization and disinfection know-how, a more secure system for managing has been developed. In addition to the standard MWT series and the waste treatment systems, CISA has introduced a compact system appropriate for clinics, small hospitals, veterinary hospitals, laboratories, mortuary establishments and small health assistance facilities for waste treatment that can be carried out internally at the facility.

SYSTEM DESCRIPTION

TREATMENT OPERATIONS

The material is carried in the treatment chamber, in cardboard boxes or specific bags for waste transportation and then treated within the MWT system; at the end of the process it is thrown away like an urban waste. The system is composed by shredder and sterilizer. The wastes are collocated in cardboard boxes or bags that are carried through a window directly inside the shredder’s hopper. After the loading operations, the shredding and sterilization cycle can start.

The treatment operations are:

  • The operator puts the material to be treated inside the loading window, placed above the system, directly inside the shredder’s hopper, opening the loading door. If the automatic function is activated, after the door closing the system starts the shredding phase automatically. The wastes are processed by automatic shredding cutting them in small pieces (in order to ease the steam penetration inside the machine) and let them fall in the sterilization chamber, thanks to the gravity force. After the chamber achieves the complete loading (the waste volume is measured by a sensor), the shredder stops its activity and the sterilizer starts the sterilization cycle of pathogenic waste.
  • The operator starts the specific cycle, chosen on the touch screen of the control panel, placed on the machine on the frontal side. The monitor displays many useful information with various messages useful for the operator.
  • The system starts the sterilization cycle automatically. The waste is treated with high pressure saturated steam, 134°C or 138°C cycles.
  • Both cycles are pre-set up on 3 – 3,5 bar (absolute pressure) and sterilization phase time of 5-10 minutes.
  • When the cycle is over, the bottom door opens automatically and the sterilized waste falls down and is gathered inside a trolley. As an optional, sterilized waste can be pushed inside plastic bags. The operator starts the suction system with a start button. The suction hose takes away the waste from the bottom of the machine and puts them automatically inside specific bags.
  • The operator takes the sterilized materials and can manage the treated waste like urban waste, according to the laws of the country.

Medical Waste Treatment
